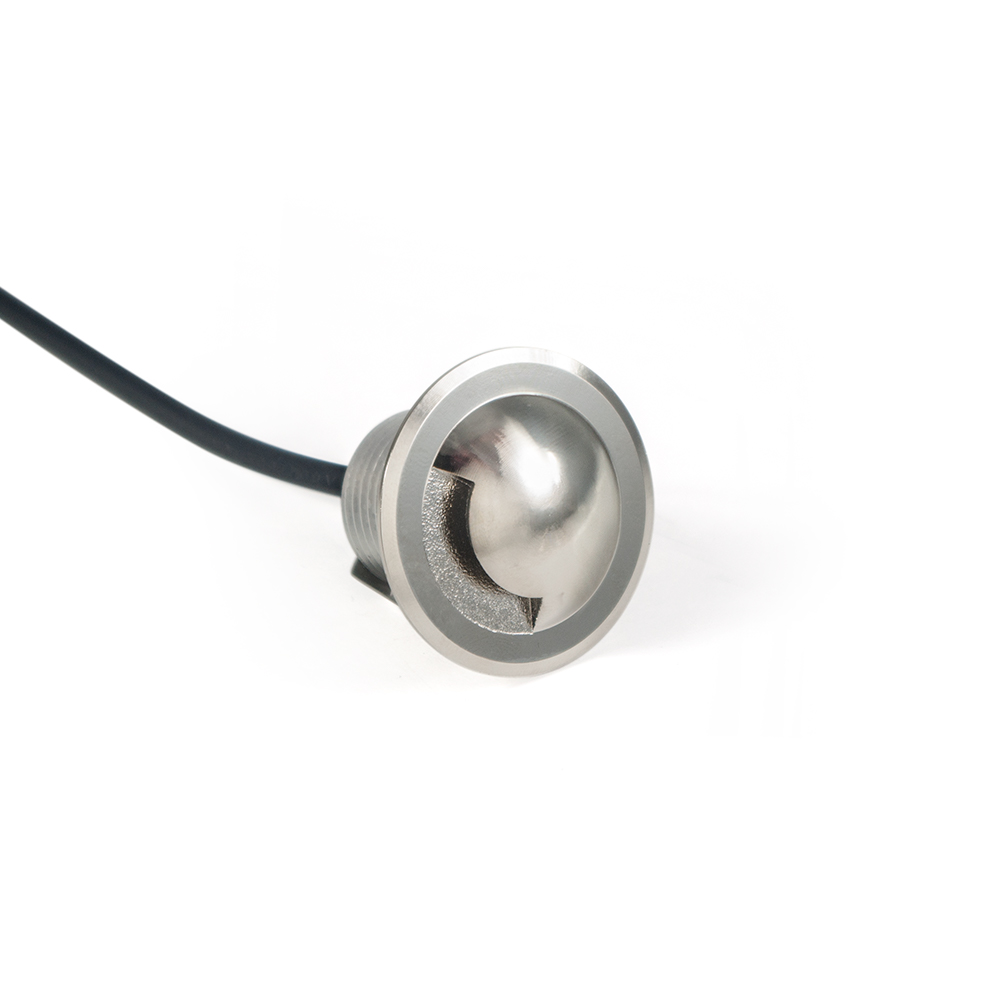

Mini Inground Drive-On Light

Print
Available in stainless steel trims. LED light engine and trim sold as finished product. cETLus listed and wet location rated.
Description

ALEDECO Global's Mini Inground Drive-On Light includes 1W x Power LED with lenses and stainless steel trims for inground installation and great for a walk on and drive on applications. High-quality trim with many style options such as open, square, 1 way or 2 way. IP67 for indoor or outdoor use.

Constant voltage Triac dimmable driver.

Plenum-rated wire available upon request.

Optional rough-in housing.

Can be Packaged in custom sets for Private Label and OEM Customers.


Specifications Chart

Product Code ALED-RD12-1W
Voltage 12V/24V DC or AC/DC
Wattage 1W (1 COB LED)
Lumens 90
Beam Degree 45°
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K / 6000K / Red / Green / Blue / RGB
Dimensions Ø11/16 x H11/8" (Ø27 x H29mm)
Hole Cutout 13/8” (35mm)
Trim Color Stainless Steel
Trim Options Round, Square, 1 Way, 2 Way
IP Rating IP67
Certifications RoHS Compliant, cETLus, CE

Features

  • Fully sealed for outdoor use
  • Spring clips to allow simple pressure fit installation
  • 45° beam
  • Aluminum housing
  • Dimmable
  • +50,000 hour lifespan with
  • 3 years warranty

Full Sets Available with custom packaging (Options include LED Drivers, # of Puck LED Puck Lights, switches, plug, wire lengths)


Applications

  • Inground lighting
  • Driveway lighting
