Mini Linkable LED Linear Light

Print
For under cabinet or back bar displays, super thin rigid aluminum housing, bright SMD LEDS, excellent color temperature and heat dissipation allow for long lifespan.
Description

ALEDECO Global's Linkable Mini LED Linear Light is super thin and works great for under cabinet, display and back bar applications. Our mini LED light bar offers a low heat, high brightness alternative to LED puck lights, it is simple to install, easy to add length and can last upwards of +50,000  hours. It comes standard in warm white and offers an adjustable light angle for multiple applications.

Custom lengths and wire systems available. Dimmable.

We can package with accessories as requested.


Specifications Chart

Product Code ALED-LL3-ADJ-12 ALED-LL3-ADJ-24 ALED-LL3-ADJ-36
Voltage 12V or 24V DC 12V or 24V DC 12V or 24V DC
Wattage 1.8W 5.6W 8.4W
# of LEDs 27 27 27
Lumens 200 380 590
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K WW 2700K / 3000K / 4000K / CW 5000K WW 2700K / 3000K / 4000K / CW 5000K
Length 12" (300mm) 24" (600mm) 36" (900mm)
Dimensions W5/8 x H5/16" (W16 x H8mm) W5/8 x H5/16" (W16 x H8mm) W5/8 x H5/16" (W16 x H8mm)
Housing Aluminum Aluminum Aluminum
Mounting Clips PC PC PC
Certifications cETLus  cETLus  cETLus

Features

  • SMD LED chip technology
  • Simple installation and easy operation
  • Super thin profile - 8mm

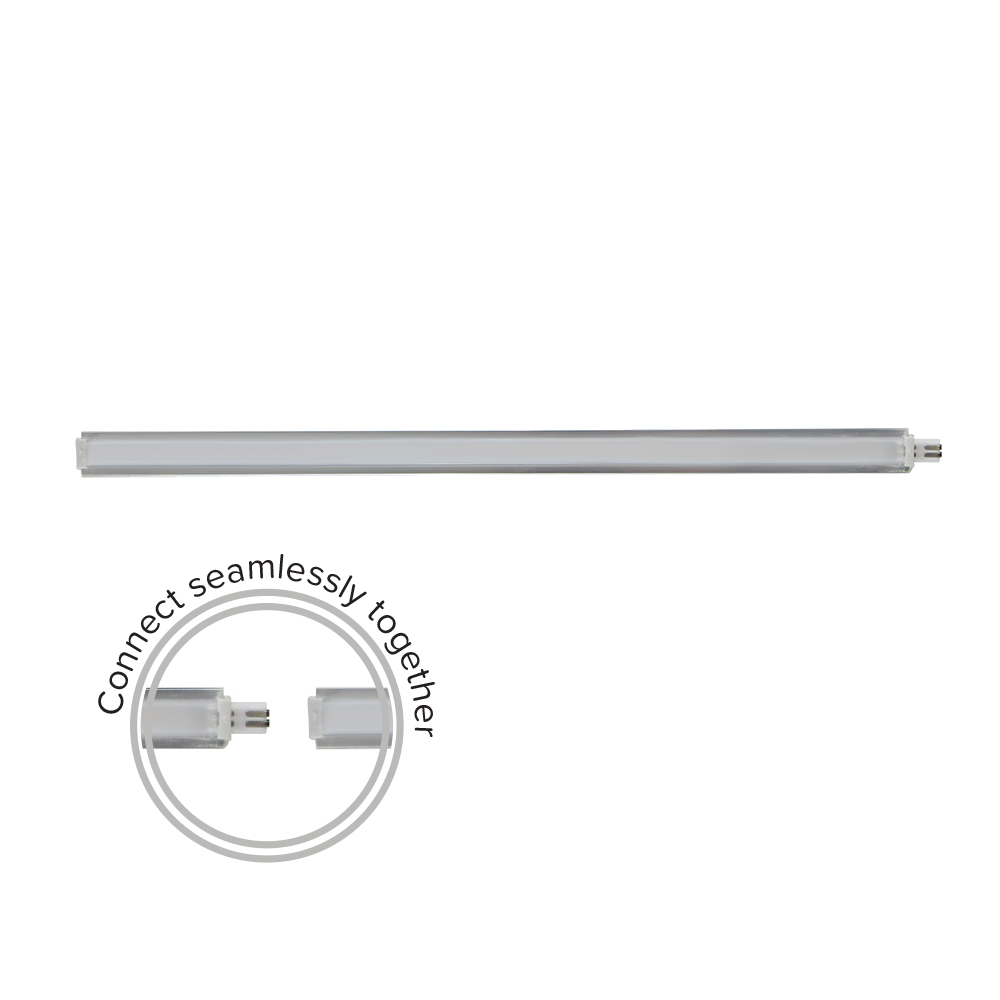

  • Linkable connection
  • Can be packaged with accessories or separate
  • Hardwire drivers available (sold separately)

Applications

  • Task lighting
  • Under-cabinet lighting
  • Display lighting
  • Back bar displays

Accessories

x2 flat mounting clips included

Flat Mounting Clips ALED-LL3-FC2
Rotating Swivel Clips ALED-LL3-SC2
Jumper Cable ALED-LL3-JC
Power Feed ALED-LL3-PF



Manufacturing

Over 6000 Square Meter LED Lighting Factory with our own in house Plastic mould and tooling production, that means we can control the quality in our factory by owning the moulds and tooling.

R&D

Aledeco Global LED specializes in the research and development of solid state LED lighting product for over 13 years. We have developed many LED lighting products, both for our own offering

Certifications

Aledeco Global China has CE and cETLus (UL and CSA) Listed LED product for Low voltage LED cabinet Lights and outdoor lights, cETLus listed for Wet location LED Step Lights.
